Useful Tools and Tips

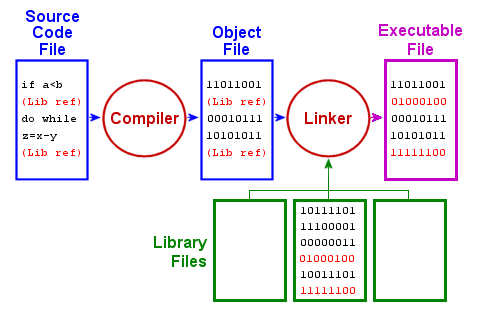

What does ‘compile’ mean?

Simple C examples

Comments:

/* This is one type of comments */

// This is another type of comment

Arrays

Remember in C array indexing start at 0 upwards.

1D array:boxes[0], boxes[1]

2D array: boxes[0][0]

3D array: boxes[0][0][0]

printf

This is used to print things to the terminal/command prompt.

Examples:

Print Statement	Output
print(“Hello my name is piglet”);	Hello my name is piglet to the prompt
printf(“Hello there are %d piglets in the room!”, 14);	Hello there are 14 piglets in the room
printf(“Hello there are %e piglets in the room!”, 13.2);	Hello there are 1.320000e+01 piglets in the room!

fprintf

The syntax is the same but you put a reference to an output file as the first parameter:

fprintf(bm->logFile, “Hello my name is piglet!”);

This will print ‘Hello my name is piglet to the log file’.

For more information see http://www.cplusplus.com/reference/clibrary/cstdio/printf/.

Redirect output to files

When you run Atlantis there are lots of messages written to the command prompt. It can be very useful to redirect these to some text files so you can read them a bit easier.

To do this use the following:

atlantismain.exe -i outputFile.nc 0 -o outputSETAS.nc -r VMPA_setas_run_fishing_F.prm -f VMPA_setas_force_fish.prm -p VMPA_setas_physics.prm -b VMPA_setas_biol_fishing.prm -h VMPA_setas_harvest_econbased.prm -a VMPA_setas_assess.prm -e VMPA_setas_economics.prm -s functionalGroups.csv 1> out1.txt 2>out2.txt

So note the last bit of the command:

program.exe 1> out1.txt 2>out2.txt

Technical stuff:

This will direct the errors to out2.txt and the normal messages to out1.txt.

Copy your exe
